What is Digitally Variable Directional Microphone?

TL;DR

Core Technology: Pawpaw Technology’s Digitally Variable Directional Microphone utilizes a MEMS array combined with advanced beamforming algorithms, allowing software-based, dynamic adjustment of pickup direction. This fundamentally removes the constraints of traditional fixed-direction microphones.

Key Benefits:

• Instant Direction Adjustment: Seamlessly switch pickup patterns—like cardioid, omnidirectional, or supercardioid—purely via software, with no hardware changes required.
• Superior Noise Suppression: Achieves 6–15dB better noise reduction than conventional microphones.
• Streamlined System Integration: A single device replaces multiple traditional mics, cutting maintenance and hardware costs.
• Versatile for Multiple Scenarios: Fits demanding professional settings such as conference rooms, courtrooms, medical consultation, and content production.

Distinct Advantages of Pawpaw Technology’s Solution:

• Ultra-Low Latency <5ms: Next-generation, lightweight algorithms push system response nearly to theoretical limits.

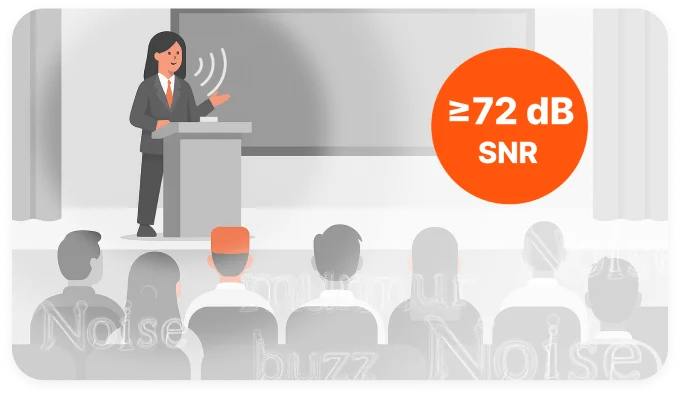

• Excellent Signal-to-Noise Ratio >72dB: Exceeds industry norms (65–68dB SNR), ensuring exceptionally clear audio.
• Fully Digital Control: Host-controlled and compact, ideal for flexible, space-saving setups.
• Expandable Functionality: High-performance DSP ensures headroom for future AI or advanced features.
• Bi-Directional and Stereo Modes: Supports specialized pickup patterns, ideal for interviews, vlogging, or other creative uses.

Typical Applications: Boardroom conference systems, courtroom and legal recording, telemedicine, studio production, integration into smart devices—anywhere premium audio is required.

By leveraging multi-element MEMS microphone arrays with sophisticated beamforming algorithms, Digitally Variable Directional Microphones offer flexibility and precision that surpass physical microphone limitations. Their main innovation: the ability to digitally and instantly alter pickup directivity while keeping consistent directionality across much of the frequency range. Unlike conventional microphones—whose directivity often varies with frequency—the digital approach maintains stable performance. Signal processing allows real-time switching between omnidirectional, supercardioid, precise beam tracking, and more, adapting exactly to application needs. For scenarios demanding top-quality audio—like conference rooms, telemedicine, legal proceedings, or content creation—this technology dramatically cuts background noise, improves audio clarity, and simplifies deployment.

How Digitally Variable Directional Microphones Work

Digitally Variable Directional Microphones combine digital signal processing, microphone array technology, and smart algorithms to provide a level of directional flexibility and control that traditional microphones simply can’t match. In essence, multiple mic elements are arranged into an array and their output is processed digitally to form a “virtual microphone” whose directionality can be precisely and dynamically adjusted, focusing on sound from desired directions while minimizing unwanted noise.

How Digital MEMS Arrays and Beamforming Collaborate

At the core of these systems is the interplay between the MEMS mic array and the beamforming algorithm. Most arrays use between 4 and 64 MEMS microphones arranged in a thoughtfully designed geometry. These elements record audio from the surrounding environment simultaneously, generating multiple digital streams.

The beamforming algorithm serves as the “brain” of the system, operating as follows:

1. Delay Compensation: Each microphone’s signal is adjusted by introducing a calculated delay based on the direction of the incoming sound:
   $$\tau_i = \frac{d_i \cdot \cos(\theta)}{c}$$
   where $\tau_i$ is the delay for mic $i$, $d_i$ its position, $\theta$ is the desired source direction, and $c$ is the speed of sound.

2. Weighted Summation: The delayed signals are then combined with specific weights:
   $$y(t) = \sum_{i=1}^{N} w_i \cdot x_i(t - \tau_i)$$

This achieves spatial filtering—boosting signals from the chosen direction while suppressing noise from elsewhere. Today’s algorithms use frequency-domain processing and adaptive logic to optimize performance for each scenario.

The Foundation of Dynamic Directionality

What sets digitally variable directional microphones apart is their ability to alter direction and pickup pattern in real time, thanks to several key innovations:

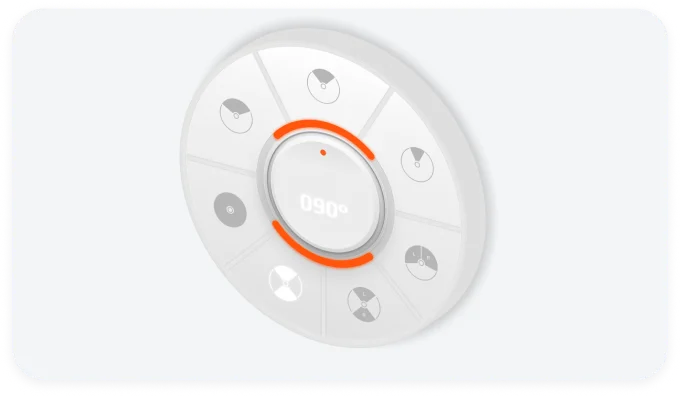

• Live, Parametric Beam adjustment: By tweaking the delays and weights in the beamforming process, the system can shift between pickup patterns like cardioid, supercardioid, omnidirectional, bi-directional, or steer the main lobe to any target.
• Multi-Beam Processing: Modern DSPs or FPGAs can simultaneously generate multiple beams, enabling the system to “listen” to several sources at once.
• Spatial Filtering: The system digitally enhances or suppresses sounds from different parts of 3D space using data from the mic array.
• Adaptive Algorithms: By estimating and tracking the direction of arrival (DOA), the system can continuously identify and “lock onto” the main speaker, autonomously steering the beam as needed.

Together, these advances enable digital microphones to intelligently adapt and deliver optimal pickup in ever-changing environments—perfect for meetings, speeches, interviews, and more.

Key Differences from Traditional Microphone Technologies

Digitally variable directional microphones are fundamentally different from legacy microphones in several areas:

1. How Directivity is Achieved

   • Traditional mics use mechanical/acoustic structures to create fixed patterns.
   • Digital systems synthesize directionality algorithmically by combining signals from multiple microphones.

2. Consistency Across Frequencies

   • Conventional microphones have directionality that varies by frequency (with weak low-frequency pickup).
   • Digital approaches maintain stable directionality throughout most of the operating range.

3. Adaptability

   • With a traditional mic, switching pattern or direction means physically swapping hardware or reconfiguring.
   • Digital arrays change pickup pattern and angle on the fly, via software.

4. Noise Rejection

   • Physical mics offer only limited off-axis noise suppression.
   • Digital systems achieve far more effective spatial filtering, boosting the signal-to-noise ratio.

5. Integration and Processing

   • Standard mics require separate DSP hardware for enhancement.
   • Digital directional mics integrate DSP to output ready-to-use, high-quality audio directly.

Thanks to these strengths, digital directional microphones are a compelling choice for advanced audio systems. Pawpaw Technology amplifies these advantages further—offering truly digital, flexible pickup adjustment, a small form factor, and simple installation and use.

Core Technical Features and Advantages

Digitally variable directional microphones have attracted attention because they deliver substantial improvements over conventional options. These strengths directly impact audio quality and make them ideal for modern, demanding use cases.

Real-Time Switching of Pickup Modes and Beam Direction

A standout feature is the ability to switch pickup patterns and steer the pickup direction instantly, without touching the hardware. Digital processing enables a single mic array to perform in a wide variety of roles:

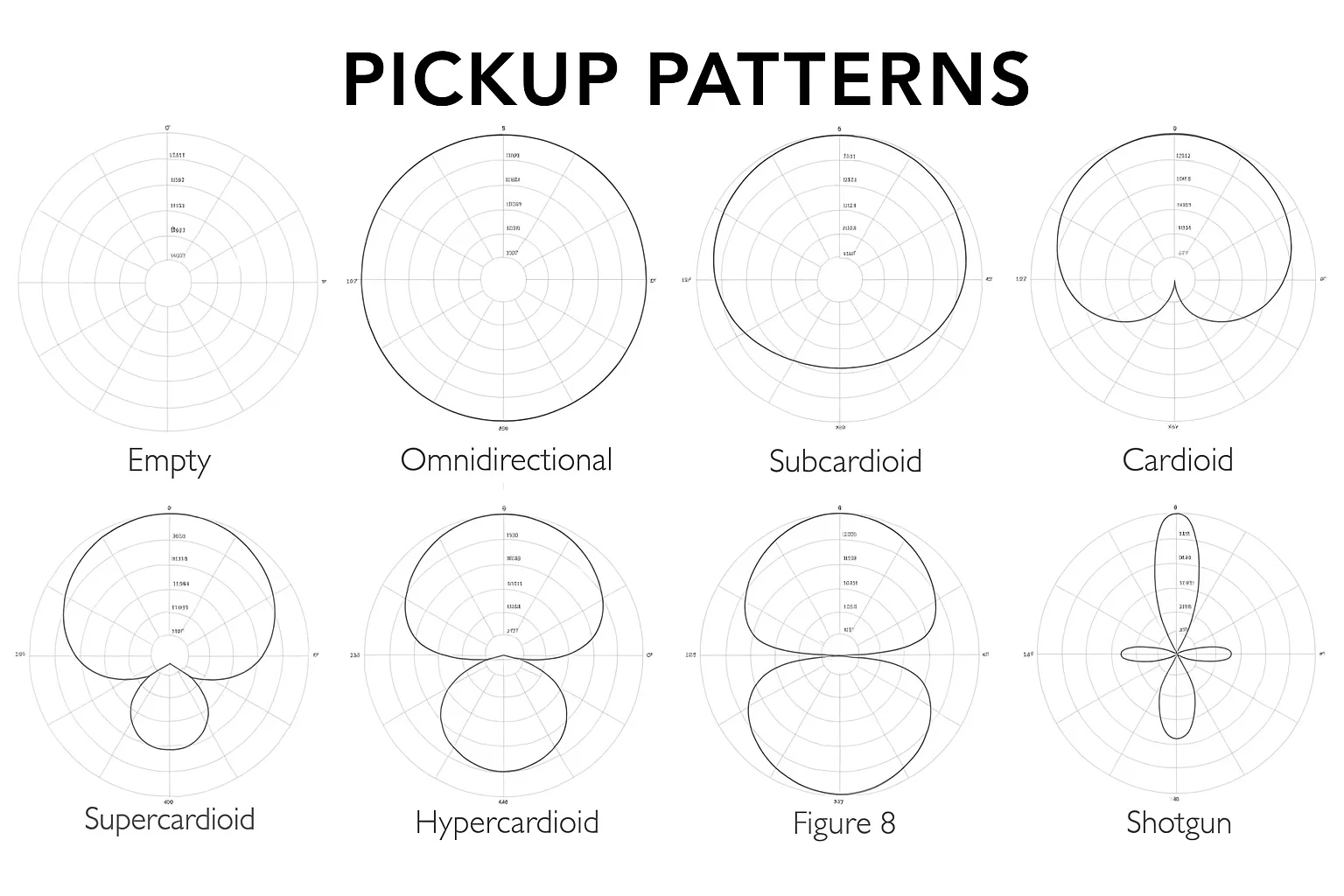

• Omnidirectional: Captures sound equally, 360°, suited to quiet environments or full-room recording.
• Cardioid: Focuses forward, rejects rear, ideal for single-person speech.
• Supercardioid: Narrower focus, even stronger side and rear rejection.

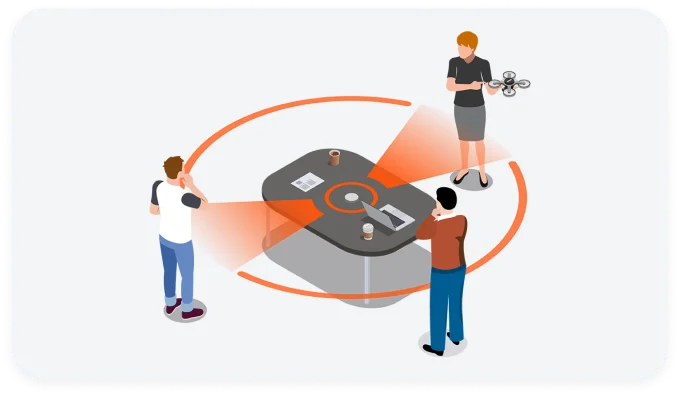

• Bi-Directional (Figure-8): Picks up equally from front and back, great for interviews or dialogue.
• Stereo: Provides realistic left/right spatial imaging.
• Shotgun/Hyper-Directional: Extremely focused, for distant or single-source pickup.

Pawpaw Technology goes further, offering enhanced bi-directional and stereo pickup options—excellent for interviews, vlogging, podcasting, and content creation.

This flexibility lets users tailor pickup strategy to the conversation format, who’s talking, or the noise present—all with a single system. Leading solutions support smoothly adjustable beam angles through a full 360°, giving you precise and dynamic direction control.

Frequency-Stable Directionality and Control of Spatial Aliasing

Traditional directional microphones often lose their sense of direction at low frequencies, or have patterns that shift with frequency. Digital mics solve this problem:

• Wide Frequency Stability: They maintain almost unchanged directionality from about 150Hz up to 16kHz.
• Low-Frequency Limitations: Getting directionality below 150Hz is hard due to physical constraints, but digital arrays maintain the best possible consistency.
• Phase Linearization: Processing keeps phase response linear to prevent “audio image” shift.
• Pattern-Based EQ: Frequency response is automatically shaped to match each pickup pattern.

To avoid spatial aliasing—a problem where microphones spaced too far apart can create signal artifacts—digital arrays use careful layout and sampling strategies. For best results, spacing should be less than half the wavelength of the highest captured frequency. In practice, placing the mics less than 8mm apart, or using non-uniform arrangements, can help suppress aliasing. The specific approach depends on both the array design and the processing algorithm used.

Efficient, Low-Complexity Beamforming Algorithms

At the heart of these systems is beamforming—the way the array shapes and steers its pickup. Modern implementations offer better performance and lower CPU/DSP load via:

1. Adaptive Filtering: Algorithms like MVDR (Minimum Variance Distortionless Response) and LCMV adjust in real-time, optimizing pickup without storing huge “pattern libraries.”
2. Sparse Representation: Algorithms take advantage of the natural sparsity of audio scenes to reduce computation.
3. Frequency-Domain Processing: Breaking the signal into bands streamlines overall processing.

This ensures all processing can be handled by modern DSPs or ARM chips, using only 5–15% of CPU depending on the complexity and product requirements—making advanced performance available even in embedded systems.

System Latency and Real-Time Performance

For live audio, conferencing, and real-time streaming, low system latency is critical. Here’s how digital arrays deliver:

• High-quality MEMS microphones feature built-in digital conversion (ADC) with sub-0.1ms delay.
• Processing pipelines use small, fast FFT blocks (typically 64–256 samples).
• Work is split efficiently across cores/bands for speed.
• Data access is optimized to keep the whole system responsive.

In real-world products, end-to-end latency (including echo cancellation and noise reduction) is typically 20–40ms³⁸. When streamlined for performance, it can be cut below 10ms⁹.

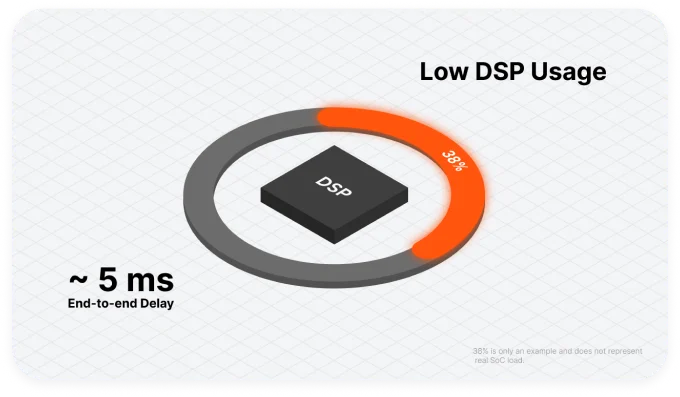

Pawpaw Technology’s advanced algorithms achieve latency under 5ms—approaching theoretical hardware limits. This not only reduces workload for the system-on-chip (SoC), but also trims power demand and heat. For conferencing, production and remote audio where every millisecond matters, this sets a new standard.

Hardware Implementation and System Architecture

Building a digitally variable directional microphone system involves precise hardware and smart architectural design—enabling both flexibility and high performance. Unlike analog mics, today’s solutions integrate compact MEMS microphone arrays, efficient digital signal chains, and powerful processing to deliver a future-proof platform.

Common MEMS Microphone Array Designs

The physical basis of these microphones is the array—multiple MEMS mics arranged for best performance. Typical layouts include:

• Linear Array: Straight line (4–8 mics), perfect for one-dimensional beam steering.
• Circular Array: Arranged in a ring (6–16 mics), covering a 360° horizontal plane.
• Planar Array: Two-dimensional matrix (like 4×4 or 8×8), allowing both horizontal and vertical beam control.
• 3D Array: Mics distributed in three axes for full 3D localization and pickup.

Microphone spacing ($d$) matters, and is usually set by:

$$d \leq \frac{\lambda_\text{min}}{2}$$

where $d$ is the mic distance and $\lambda_\text{min}$ represents the shortest wavelength (highest relevant frequency). Too much spacing causes aliasing; too little can affect beam sharpness.

Modern MEMS arrays offer high consistency (frequency response typically matched to within ±1dB) and low noise (usually less than 30dBA SPL). Commercial units, like the TDK ICS-43432⁵, commonly achieve a 65–68dB SNR. Pawpaw Technology’s design further optimizes for SNR above 72dB—raising audio quality even in tough acoustic settings.

Digital Signal Processing Workflow

The signal chain for a digitally variable directional mic is central to system quality and usually includes:

1. Acquisition & Synchronization

   • Converts PDM (Pulse Density Modulated) signals to PCM (Pulse Code Modulation)
   • Precise clock sync between all channels (<5ns variation)
   • Initial gain settings and calibration

2. Frequency Transformation & Analysis

   • Short-Time Fourier Transform (STFT), commonly 25–50ms frame size
   • Division into 24–32 sub-bands
   • Fine phase corrections

3. Beamforming Algorithm

   • Delay-and-sum: Fast, for low-resource applications
   • MVDR: For strong adaptive noise performance
   • LCMV: Allows multiple simultaneous pickup directions
   • GSC: Handles adaptive beam steering and noise cancellation

4. Post-Processing & Enhancement

   • Spatial filters and background noise suppression
   • Echo cancellation and anti-feedback
   • Automatic gain control (AGC)

All of these are optimized to keep total signal delay low (generally under 10ms) while delivering pristine and adaptive pickup.

Deployed systems integrate easily with conference software, recorders, and AV solutions via industry standards such as Dante, USB Audio Class 2.0, or AVB. With high-performance DSP at the core, Pawpaw Technology’s platforms support both top efficiency and future upgrades—including edge AI. In embedded applications, power draw of 1–3W is typical and manageable.

Application Scenarios and Solutions

Thanks to outstanding versatility, digitally variable directional microphones deliver compelling benefits in a range of demanding applications, often outperforming traditional mics.

Professional Conference Rooms & Collaboration Spaces

Modern workplaces increasingly rely on digital directional arrays. Main benefits:

• Adaptive Meeting Coverage: System tracks who’s talking and adjusts pickup zones, so participants are heard clearly from anywhere.
• Multi-Speaker Clarity: Simultaneously forms several “virtual mics” for each attendee, ensuring every voice is distinct.
• Automatic Noise Filtering: Suppresses distractions like air conditioning or projector fans so speech comes through sharp and clean.

Large meeting spaces often use one array per participant for seamless coverage. APIs enable close interaction with meeting software for speaker tracking, voice-activated functions, and a reduction in ongoing support costs.

Courtrooms and Finance/Security Environments

Reliable, high-fidelity audio is critical in legal and regulatory environments. Digital microphones excel by:

• Capturing All Voices Clearly: Judges, attorneys, witnesses, and defendants are all recorded accurately.
• Multi-Track Recording: Provides separate, synchronized audio tracks for each party, supporting legal recordkeeping and secure transaction monitoring.

These systems integrate with legal evidence management and transcription tools, ensuring integrity from capture through archiving. Fewer devices are needed thanks to digital beamforming, improving both reliability and clarity.

Remote Healthcare and Telemedicine

Enabling precise audio in remote consultations, these systems provide:

• Clear, Multi-Party Communication: More than one patient or provider can speak freely and be captured without compromise.
• Medical Device Noise Suppression: The array selectively rejects hum and beeps from monitors and machinery.
• Flexible Acoustics: Works equally well in examination rooms, clinics, or surgical suites.

Hardware is medical-grade and built for sanitization. Out-of-the-box compatibility with telemedicine platforms streamlines remote care and reduces setup burden.

Content Creation, Broadcasting, and Media

Content creators and media pros benefit from:

• Universal Adaptation: One system works for solo podcasts, roundtable interviews, or ambient room capture.
• Simplified Post-Production: “Virtual mics” mean you can refocus the audio after recording, reducing reshoot needs.
• Live Streaming Boost: Delivers real-time mixing and spatial effects for richer online broadcast.

Podcasters, streamers, YouTubers, and small studios can often replace a table full of traditional mics with a single smart array, making professional sound accessible even to non-technical users.

Deployment and Integration Considerations

Setting up a digital directional mic system—from hardware installation to software integration—takes thoughtful planning to fully realize its benefits. While these systems simplify architecture and deployment, good project design remains essential.

Cost-Benefit Analysis

Digital directional arrays deliver notable cost savings versus traditional “one-mic-per-speaker” approaches:

• A single array can replace several regular directional mics, typically reducing up-front hardware spend by 30–40%.
• Modular design allows systems to scale easily with space or budget.

Long-term, total ownership cost is reduced via:

• Less maintenance and fewer on-site support calls.
• Smaller system footprint and less equipment clutter.

For large projects, these efficiencies help recoup any initial premium—often within two to three years.

FAQ

What’s the principle behind digitally variable directional microphones, and how do they differ from traditional mics?

Digitally variable directional microphones use arrays of MEMS sensors and advanced DSP (like beamforming) to create “virtual microphones” with flexible, software-defined pickup patterns. Unlike older mics that set directionality by mechanical design, digital versions let you shift pattern and angle in real time—no hardware swaps needed. This brings unmatched control, with pickup strength and consistency across the effective frequency range, forever changing professional audio capture.

Can I really change pickup direction instantly with these systems?

Absolutely. Real-time adjustment is at the heart of the technology. Modern DSPs or SoCs allow seamless, on-the-fly switching between omnidirectional, cardioid, supercardioid—or even custom pickup zones—while you’re recording or streaming. Advanced platforms let you “listen” in multiple directions at once, creating a virtual field of microphones that can be moved by software, not by hand.

How much can they improve audio quality in noisy spaces?

Digitally variable directional mics offer inherent spatial filtering that sharply reduces pickup of unwanted sounds. Add state-of-the-art beamforming and noise reduction, and the system can nearly eliminate common office noise—air conditioning, keyboards, or hum from computers. Both research⁶ and real-world measurements⁷ show typical signal-to-noise improvements from 6 to 15dB over conventional directional mics: voices come through loud and clear, even in tough environments.

Do these microphones meet professional requirements for latency and system integration?

Yes. Leading products like Sony’s MAS-A100 and ClearOne’s BMA series offer total audio latency (including echo and noise processing) of 20–40ms³⁸, with optimized versions as low as 10ms⁹. Pawpaw Technology’s own solution drives latency below 5ms, while delivering premium SNR (>72dB). These digital mics integrate smoothly into conferencing, recording, interpretation, and educational platforms, supporting future system upgrades and integration by IT and engineering teams.

What do digitally variable directional microphones mean for content creators and smart devices?

For creators, this technology means unmatched flexibility—recording, streaming, group interviews, ambient pickup, and even post-session refocusing are all at your fingertips via a single, software-driven system. Users get pro-grade results, greater energy efficiency, and a future-proof path for advanced features. Pawpaw Technology stands out here: with 100% digital pickup, full host control, and expansion options, it brings a new level of capability and ease to production workflows of all types.

Conclusion

With advanced signal processing, adjustable directivity, multi-environment adaptability, and superior integration, Digitally Variable Directional Microphones are reshaping professional audio capture. They deliver clearer sound, greater deployment flexibility, and lower maintenance—impacting sectors from conferencing and legal to medicine, content creation, and IoT. By uniting sophisticated DSP, modular hardware, and software-driven features, these microphones signal the future of high-quality, intelligent audio.

Pawpaw Technology leads this innovation, driving the technology forward with future-proof architectures, lightweight algorithms, and powerful DSP platforms. As audio solutions become ever more intelligent and adaptable, digitally variable directional microphones are poised to set new industry benchmarks. Reach out to us here to discover how we can empower your next-generation products.
